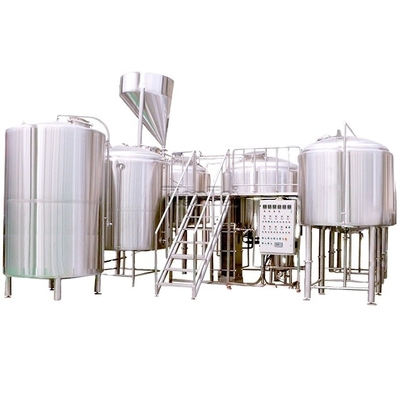

Tiantai 60HL 6000L Stainless Steel 5 Vessel Commercial Brewery Turnkey Factory Equipment Equipment Brewhouse Beer Brewing System

1 Set
MOQ
Tiantai 60HL 6000L Stainless Steel 5 Vessel Commercial Brewery Turnkey Factory Equipment Equipment Brewhouse Beer Brewing System
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Processing: Other
Applicable Industries: Hotels, Manufacturing Plant, Food & Beverage Factory, Restaurant, Food & Beverage Shops, Brewery, Microbrewery, Nanobrewery, Brewpub
Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Indonesia, India, Mexico, Russia, Spain, Thailand, Argentina, South Korea, Chile, Colombia, South Africa, Uzbekistan, Japan, Malaysia, Austra
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty of core components: 5 years
Core Components: Pressure vessel
Condition: New
Model Number: BS-6000L
Voltage: 220V/380V/400V/415V or as per request
Power: 750W
Weight: 4300 KG
Dimension(L*W*H): 9000*6500*4600mm
Processing Types: Beer
Warranty: 5 years
Function: Beer Brewing
Application: Commercial Brewery, Micro Brewery
Capacity: 6000L, 60hl, 6000 liters, 6000 litres
Material: SUS304
Heating: Steam heated
Brewhouse Structure: Five Vessel, 5 Vessel
Control Unit: PID Instrumental, or Automatic PLC With Siemens Touch Screen
Motor Brand: WEG, ABB, or as per request
Interior Finish: Acid pickled and passivated
Polishing Precision: 0.2μm to 0.4μm
Informations de base
Model Number: BS-6000L
Conditions de paiement et expédition
Packaging Details: Wooden/Veneer case for LCL; Plastic film wrapped and iron frame fixing for FCL
Supply Ability: 10 Set/Sets per Month
Description de produit
Product Description
6000L Four Vessel Steam Heated Brewhouse Double Jacketed Fermenters
60HL Turnkey Commercial Micro Brewery Equipment

Tiantai 6000L Beer Brewing Equipment is designed for brewing craft beer with commercial purposes for nanobrewery, microbrewery, brewpub, taproom and restaurants. The brewers will find it easy to brew an outstanding full-bodied beers like Ale, Lager, Stout, IPA, etc. by using our brewery equipment under guidance.

Tiantai offers the complete turn-key solutions consisting of malt milling unit, brewhouse unit, beer fermentation unit, largering unit, glycol chilling unit, electric control unit, CIP cleaning unit, beer filtration unit, water treatment unit, beer bottling unit, or beer kegging unit, or beer canning unit.
Core Components
5-Vessels Brewhouse Unit
1*6000L Mash Tun
1*3000L Cook Tun
1*6000L Lauter Tun
1*6000L Kettle Tun
1*6000L Whirlpool Tun
1*120HL Hot Liquor Tank
5*15m3/h Centrifugal Pumps
Double Jacketed Fermentation Unit
4*120HL Conical Beer Fermenters
1*120HL Bright Beer Tank
Glycol Chilling Unit
1*6000L Glycol Water Tank
1*120HL Cold Liquor Tank
2*15HP Chillers
1*8m3/h Glycol Water Pump
Electric Control Unit
Brewhouse Instrumental Control Panel
Fermentation Instrumental Control Panel
Specification
Brewhouse Capacity
6000L per brew
Heating
Steam heated
Brewhouse Structure
5 Vessel, Five Vessel
Materials
SUS304 stainless steel (304L, 316, 316L or red copper is also available as per request.)
Interior Finish
Completely acid pickled and passivated
Working Pressure
Atmospheric
Material Interior and Exterior Shell
304 Stainless Steel
Polishing Precision of Interior Finish
0.2μm to 0.4μm
Insulation Material of Brewhouse
Rock wool
Insulation Material of Fermenters/BBTs
Polyurethane (PU)
Steam Jackets
Dimple plates on bottom, side wall
Jacket Working Pressure
＜2bar
CIP Spraying Ball
360° Rotary CIP ball on top
Details Images
Recommend Products
Why Choose Us
Endorsement From 1,000+ Breweries Worldwide
Since 2012, Tiantai has served more than 1,000 breweries from over 80 countries worldwide.
The praises and good comments from our clients have greatly help Tiantai step into the top-class suppliers of beer brewing equipment in China. With their great supports, Tiantai keeps promoting himself toward a higher goal of the worldwide famous brands.
Company Profile
Shandong Tiantai Beer Equipment Co., Ltd. (shortened as Tiantai) is a China-based manufacturer and exporter of beer brewing equipment since 2012. As an emerging and prospective competitor, Tiantai is more than a supplier to offer the brewery tanks connected by piping and fittings, but a complete-solution provider to operate the turnkey beer brewing system with custom designs for the craft brewers all over the world.

Tiantai positions himself as a specialized manufacturer of the commercial brewery equipment. With aims at helping brewers all over the world to brew craft beers to perfection, Tiantai is endeavoring to improving every tiny details of our brewing equipment to meet their increasingly higher requirements. Tiantai beer brewing system is prepared for those who want their beers at highest quality and best flavor.

Tiantai keeps focusing on offering clients with high quality equipment and superior services which allow the brewers to
minimize the cost but maximize the profits on operating our brewing systems and to produce better beers in wide range of styles.
